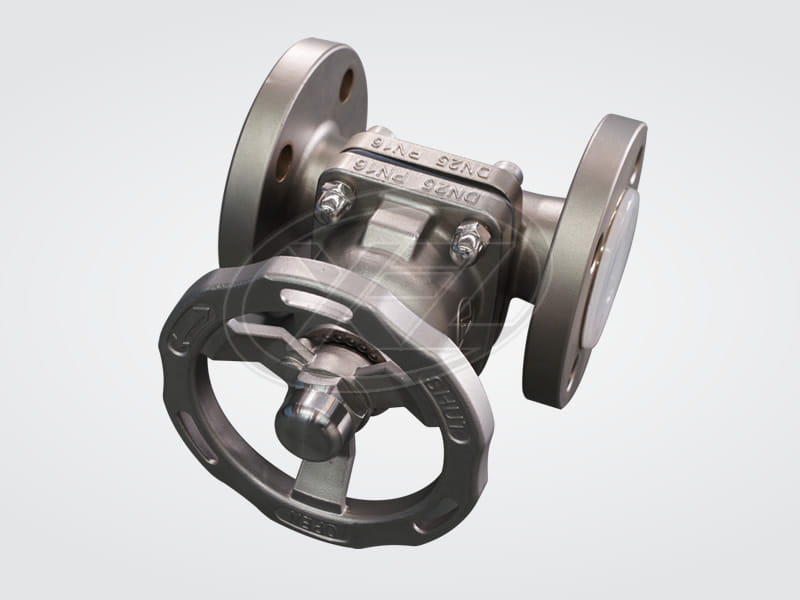

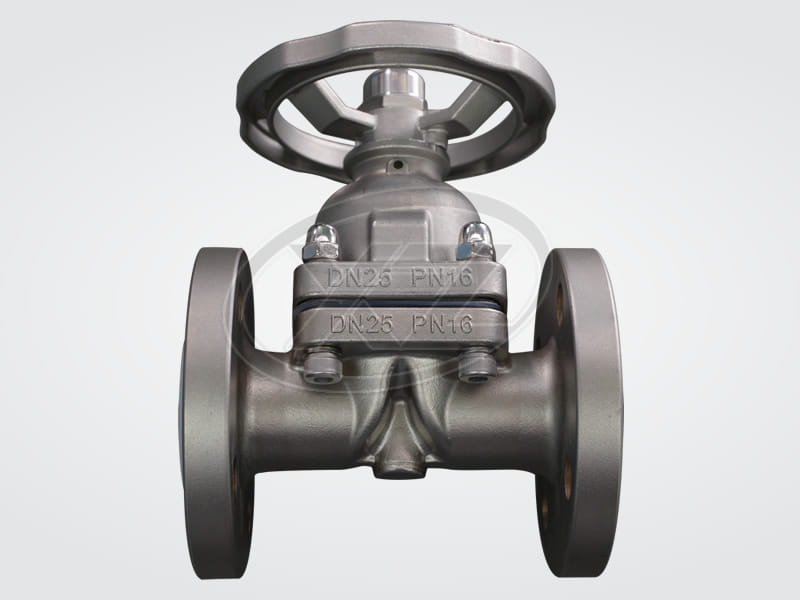

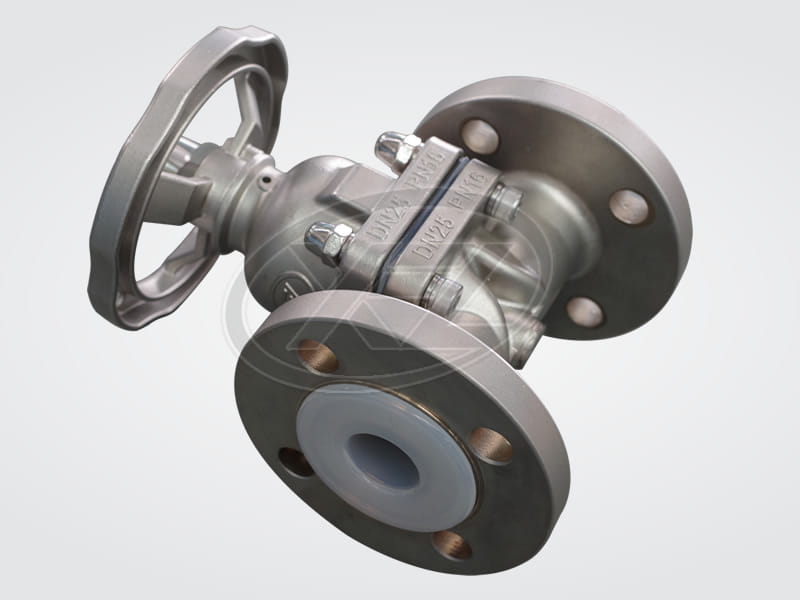

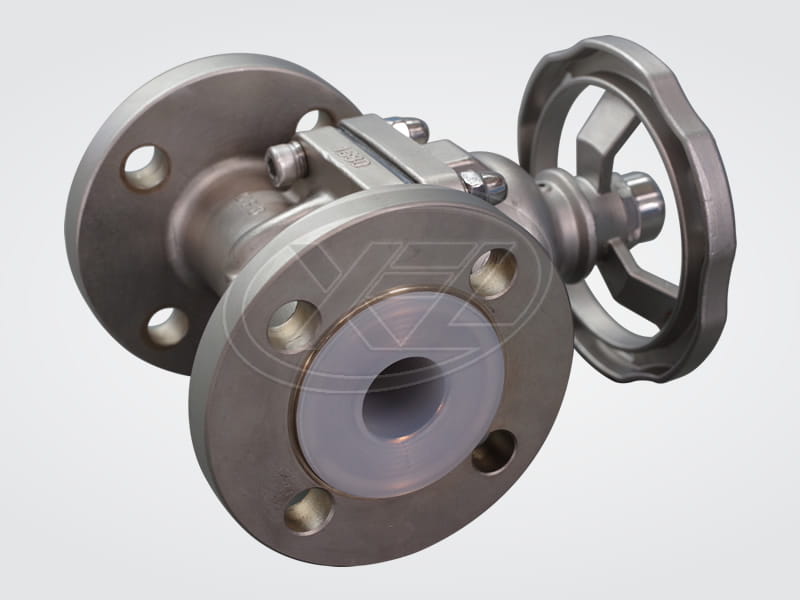

PFA Lined Diaphragm Valve
APPLICATION: Chemical Industry
Design And Manufacturing: HG/T3704
MATERIALS: Stainless Steel
LINING MATERIAL: PFA / PTFE
Structure length: GB/T12221 / HG/T3704
Symbol: GB/T12220
APPLICATION: Chemical Industry
Design And Manufacturing: HG/T3704
MATERIALS: Stainless Steel
LINING MATERIAL: PFA / PTFE
Structure length: GB/T12221 / HG/T3704
Symbol: GB/T12220

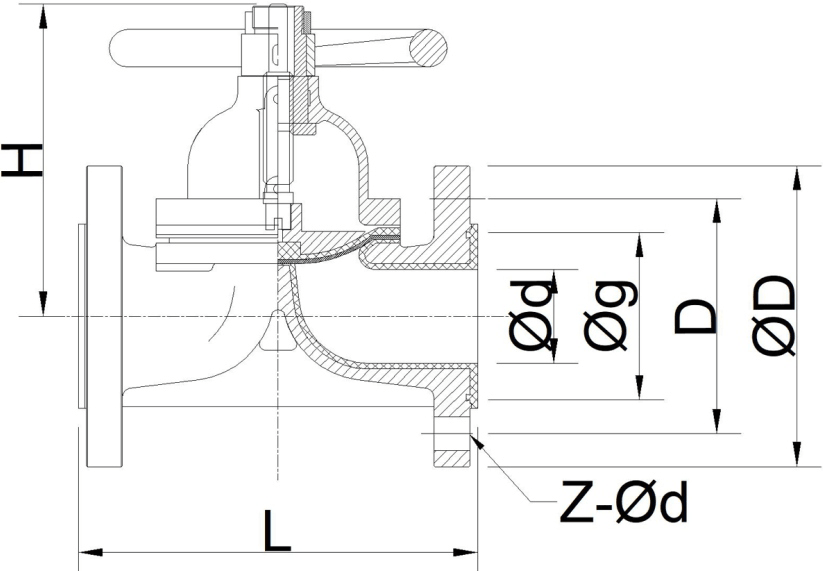

Size(mm) | L (mm) | ∅d (mm) | ∅g (mm) | ∅D (mm) | D (mm) | Z-∅d | H (mm) | |||||
DN | JIS 10K | PN1.6MPa/ JIS 10K | PN1.6 MPa | JIS 10K | PN1.6 MPa | JIS 10K | PN1.6 MPa | JIS 10K | PN1.6 MPa | JIS 10K | ||
15 | 15A | 125 | 20 | 45 | 52 | 95 | 95 | 65 | 70 | 4-∅14 | 4-∅15 | 110 |
20 | 20A | 135 | 20 | 55 | 52 | 105 | 100 | 75 | 75 | 4-∅14 | 4-∅15 | 120 |
25 | 25A | 145 | 25 | 65 | 60 | 115 | 125 | 85 | 90 | 4-∅14 | 4-∅19 | 125 |
32 | 32A | 160 | 30 | 78 | 76 | 140 | 135 | 100 | 100 | 4-∅18 | 4-∅19 | 130 |
40 | 40A | 180 | 38 | 86 | 79 | 150 | 140 | 110 | 105 | 4-∅18 | 4-∅19 | 140 |
50 | 50A | 210 | 49 | 101 | 96 | 165 | 155 | 125 | 120 | 4-∅18 | 4-∅19 | 160 |
65 | 65A | 250 | 64 | 121 | 112 | 185 | 175 | 145 | 140 | 8-∅18 | 4-∅19 | 175 |
80 | 80A | 300 | 78 | 136 | 123 | 200 | 185 | 160 | 150 | 8-∅18 | 8-∅19 | 205 |
100 | 100A | 350 | 98 | 156 | 147 | 220 | 210 | 180 | 175 | 8-∅18 | 8-∅19 | 275 |
We have professional engineers to provide you with free technical consultation and solutions.
