PFA lined Ball Valve
APPLICATION: Chemical Industry
Design And Manufacturing: HG/T3704
MATERIALS: Stainless Steel
LINING MATERIAL: PFA
Structure length: GB/T12221 / HG/T3704
Symbol: GB/T12220
APPLICATION: Chemical Industry
Design And Manufacturing: HG/T3704
MATERIALS: Stainless Steel
LINING MATERIAL: PFA
Structure length: GB/T12221 / HG/T3704
Symbol: GB/T12220

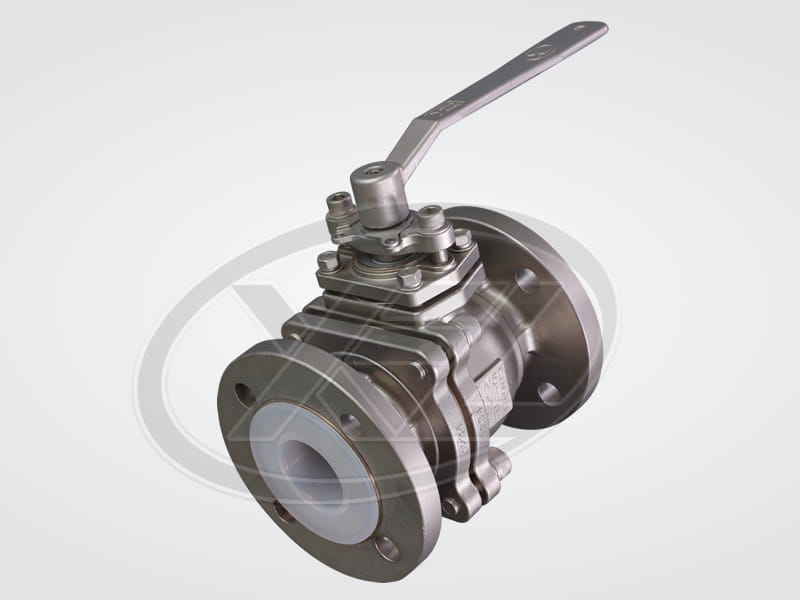

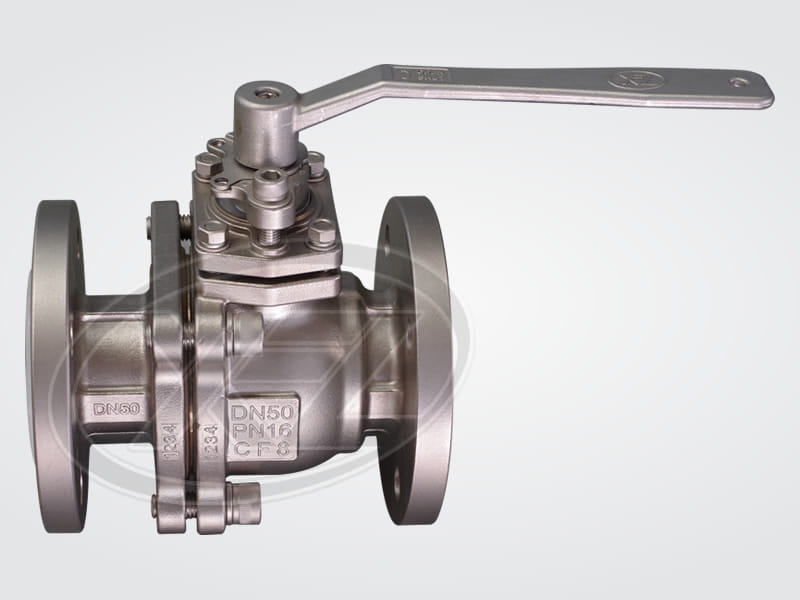

The PFA lined ball valve developed by our company includes manual type and pneumatic type. The lining is made of PFA molded material. The valve body adopts a two-piece structure. During the product manufacturing process, the molding accuracy and molding quality are strictly controlled. Each processing procedure is strictly controlled, and strive to make each product into a high-quality product.
Features of Ball Valve

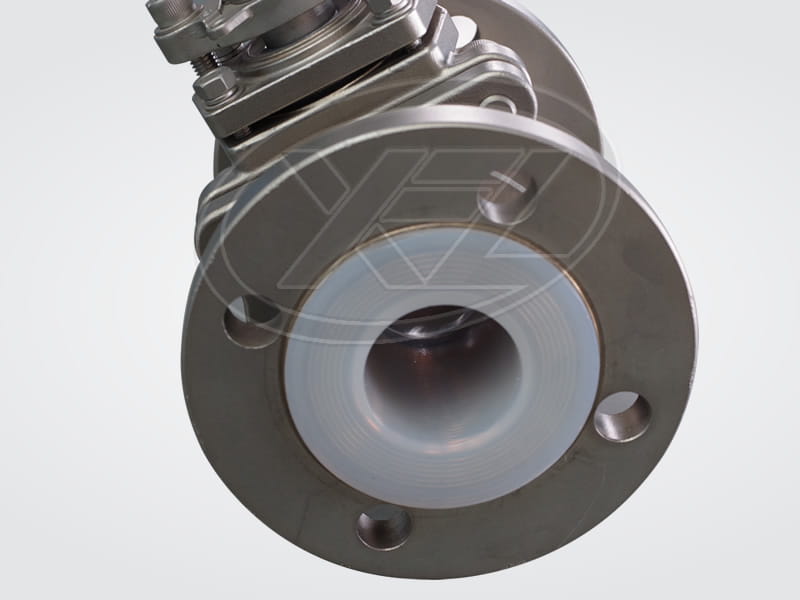

PFA lined ball valve can be used for almost every liquid cause of durable PFA lining, and it has no corrosive action by liquid.
PFA lined ball valve is safe from chemical reactions and effluents of impurities, it is a translucent and high purity grade body.
PFA lined ball valve has exceptional heat resistance than normal plastic valves. It can be used wide service temperature range.
PFA lined ball valve is easier to open-close than the other valves, because it has non stick characteristics that prevent minimize the effect of friction.
PFA lined ball valve has high flow rate because it is with same size as the pipe and keeps straight design.
Size(mm) | L (mm) | HL (mm) | ∅d (mm) | ∅g (mm) | ∅D (mm) | D (mm) | Z-∅d | H (mm) | |||||
DN | JIS 10K | PN1.6MPa JIS 10K | PN1.6 MPa | JIS 10K | PN1.6 MPa | JIS 10K | PN1.6 MPa | JIS 10K | PN1.6 MPa | JIS 10K | |||
15 | 15A | 140 | 120 | 20 | 45 | 52 | 95 | 95 | 65 | 70 | 4-∅14 | 4-∅15 | 158.5 |
20 | 20A | 140 | 120 | 20 | 55 | 52 | 105 | 100 | 75 | 75 | 4-∅14 | 4-∅15 | 158.5 |
25 | 25A | 150 | 165 | 25 | 65 | 60 | 115 | 125 | 85 | 90 | 4-∅14 | 4-∅19 | 172.5 |
32 | 32A | 165 | 165 | 30 | 78 | 76 | 140 | 135 | 100 | 100 | 4-∅18 | 4-∅19 | 185.5 |
40 | 40A | 180 | 190 | 38 | 86 | 79 | 150 | 140 | 110 | 105 | 4-∅18 | 4-∅19 | 193.5 |
50 | 50A | 200 | 230 | 49 | 101 | 96 | 165 | 155 | 125 | 120 | 4-∅18 | 4-∅19 | 226 |
65 | 65A | 220 | 260 | 64 | 121 | 112 | 185 | 175 | 145 | 140 | 8-∅18 | 4-∅19 | 257 |
80 | 80A | 250 | 280 | 78 | 136 | 123 | 200 | 185 | 160 | 150 | 8-∅18 | 8-∅19 | 267 |
100 | 100A | 280 | 300 | 98 | 156 | 147 | 220 | 210 | 180 | 175 | 8-∅18 | 8-∅19 | 314.5 |
125 | 125A | 320 | - | 122 | 186 | 180 | 250 | 250 | 210 | 210 | 8-∅18 | 8-∅23 | - |
150 | 150A | 360 | - | 146 | 212 | 210 | 285 | 280 | 240 | 240 | 8-∅22 | 8-∅23 | - |
We have professional engineers to provide you with free technical consultation and solutions.
