PFA Drawn tube
APPLICATION: Chemical Industry
Design And Manufacturing: HG/T3704
MATERIALS: Stainless Steel
LINING MATERIAL: PFA
Structure length: GB/T12221 / HG/T3704
Symbol: GB/T12220
APPLICATION: Chemical Industry
Design And Manufacturing: HG/T3704
MATERIALS: Stainless Steel
LINING MATERIAL: PFA
Structure length: GB/T12221 / HG/T3704
Symbol: GB/T12220

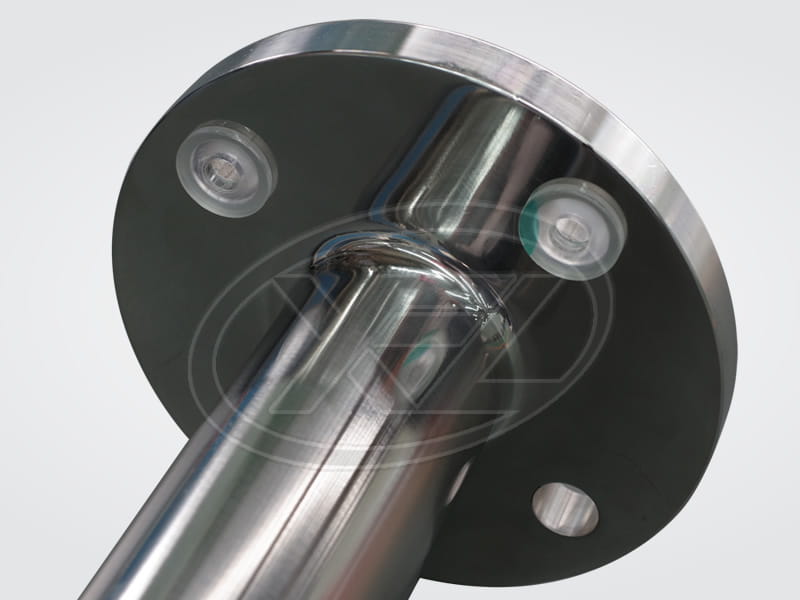

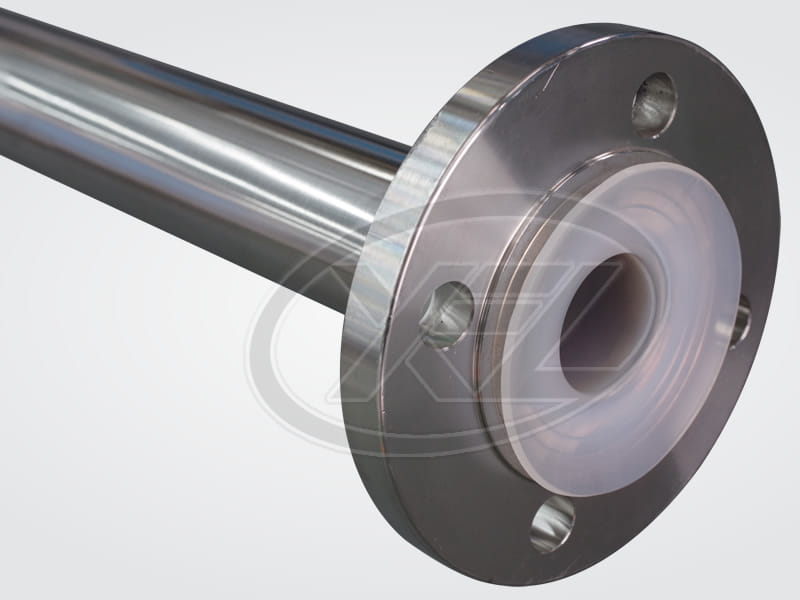

Molded PFA pipe fittings are made of strong corrosion-resistant PFA materials, which have the characteristics of high density, high strength, and uniform lining thickness.
1、PFA raw materials can be 3M6502TZ, AP230, PW-200, etc.
2、Length standard L=300, and other lengths are based on customer requirements.
3、The shell material can be stainless steel or carbon steel.
4、JIS, GB and ANSI can be provided for flange standards according to customer needs.
Size(mm) | L (mm) | ∅d (mm) | ∅d (mm) | 材料 Material | Tolerance (mm) | ||
DN | JIS 10K | PFA | PTFE | PFA | PTFE | ||
15 | 15A | 2000 | 15 | 15 | √ | √ | ±2 |
20 | 20A | 2000 | 15 | 15 | √ | √ | ±2 |
25 | 25A | 2000 | 20 | 20 | √ | √ | ±2 |
40 | 40A | 2000 | 35 | 35 | √ | √ | ±2 |
50 | 50A | 2000 | 45 | 45 | √ | √ | ±2 |
65 | 65A | 2000 | 59 | 59 | √ | √ | ±2 |
80 | 80A | 2000 | 74 | 74 | √ | √ | ±2 |
100 | 100A | 2000 | 96 | 91 | √ | √ | ±2 |
125 | 125A | 1000 | 119 | 115 | √ | √ | ±3 |
150 | 150A | 1000 | 144 | 137 | √ | √ | ±3 |
200 | 200A | 1000 | 200 | 193 | √ | √ | ±3 |
250 | 250A | 1000 | 250 | 242 | √ | √ | ±3 |
300 | 300A | 1000 | 299 | 290 | √ | √ | ±3 |
We have professional engineers to provide you with free technical consultation and solutions.
