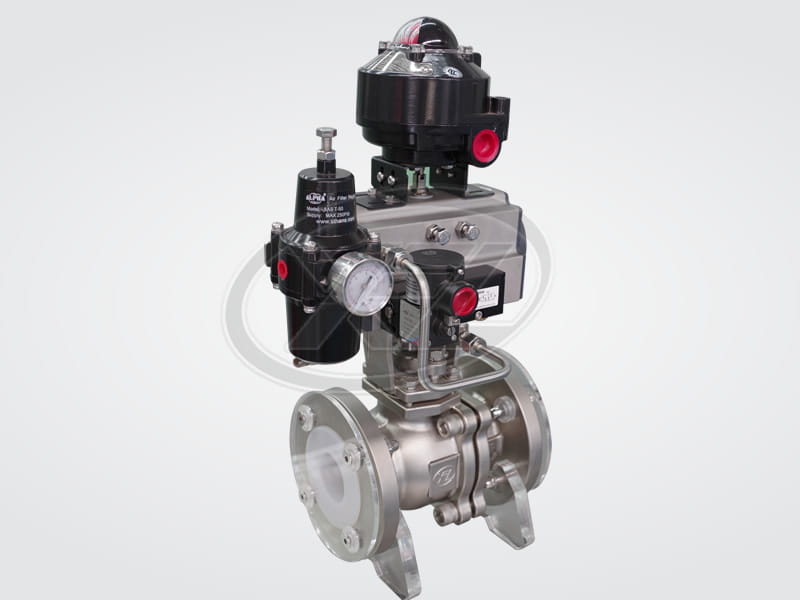

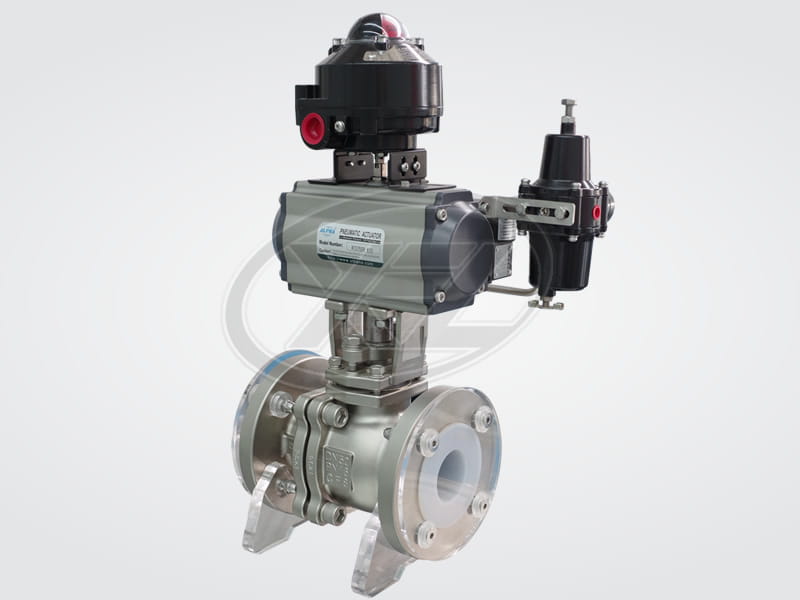

PFA Pneumatic Type Ball Valve Dimensions
APPLICATION: Chemical Industry
Design And Manufacturing: HG/T3704
MATERIALS: Stainless Steel

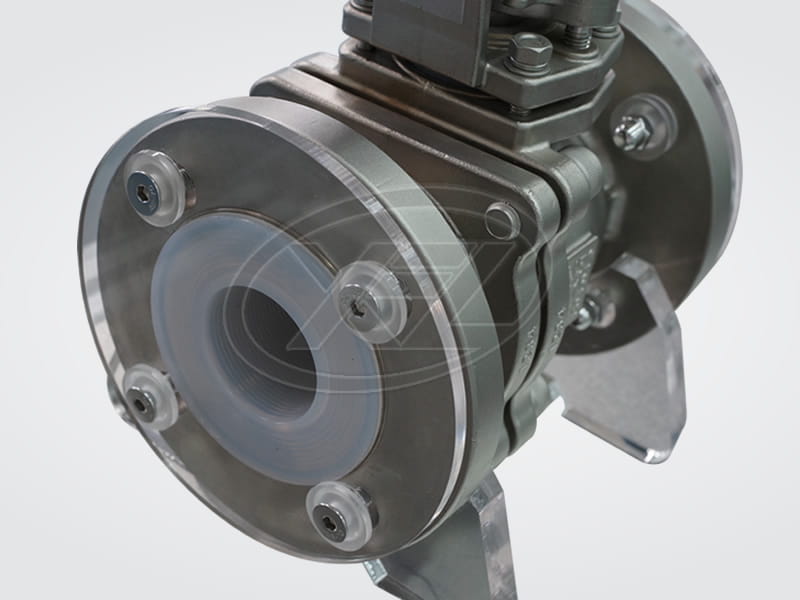

LINING MATERIAL: PFA / PTFE
Structure length: GB/T12221 / HG/T3704
Symbol: GB/T12220
ISO 5211 | ∅d | Bracket | R(TAP) |
∅D | |||
F05 | ∅50 | ∅6.5 | M6 |
F07 | ∅70 | ∅9 | M8 |
F10 | ∅102 | ∅11 | M10 |
F12 | ∅125 | ∅13.5 | M12 |
F14 | ∅140 | ∅18 | M16 |
F16 | ∅165 | ∅22 | M20 |

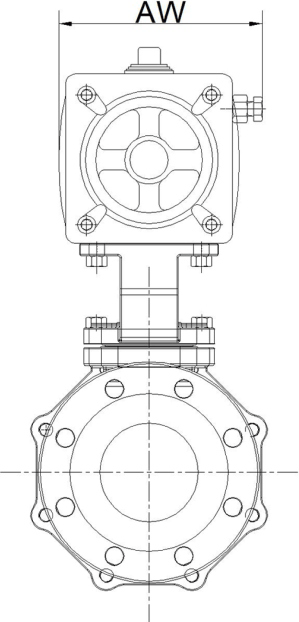

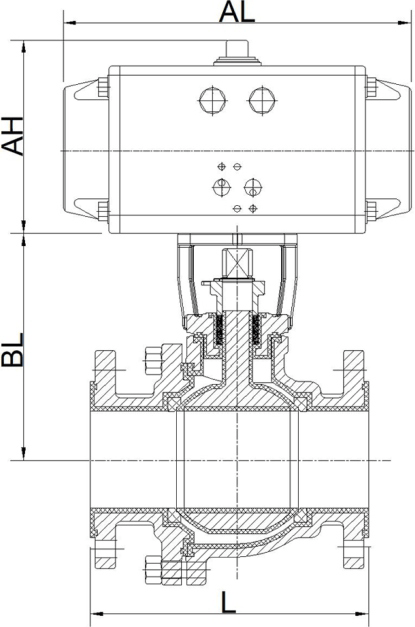

公称通径 Size(mm) | L (mm) | BL | AL | AH | AW | 扭矩 Torque | 支架 Bracket | |
DN | JIS 10K | N.M | ISO 5211 | |||||
15 | 15A | 140 | 99 | 168 | 107.5 | 72 | 12 | F05/F07 |
20 | 20A | 140 | 99 | 168 | 107.5 | 72 | 18 | F05/F07 |
25 | 25A | 150 | 100 | 184 | 119.5 | 81 | 30 | F05/F07 |
32 | 32A | 165 | 108 | 204 | 128.5 | 92 | 40 | F05/F07 |
40 | 40A | 180 | 114 | 262 | 136.5 | 98 | 47 | F05/F07 |
50 | 50A | 200 | 132 | 268 | 153 | 109.5 | 68 | F07/F10 |
65 | 65A | 220 | 154 | 301 | 175 | 127.5 | 83 | F07/F10/F12 |
80 | 80A | 250 | 159 | 301 | 175 | 127.5 | 100 | F07/F10/F12 |
100 | 100A | 280 | 184 | 390 | 192 | 137.5 | 125 | F10/F12 |
125 | 125A | 320 | 225 | 450 | 217 | 158 | 150 | F10/F12 |
150 | 150A | 360 | 261 | 525 | 260 | 189 | 214 | F12/F14/F16 |
