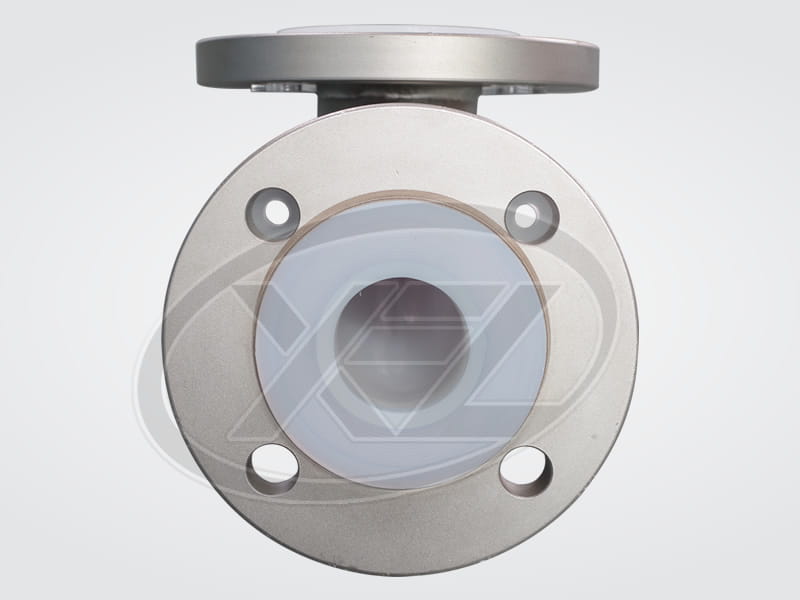

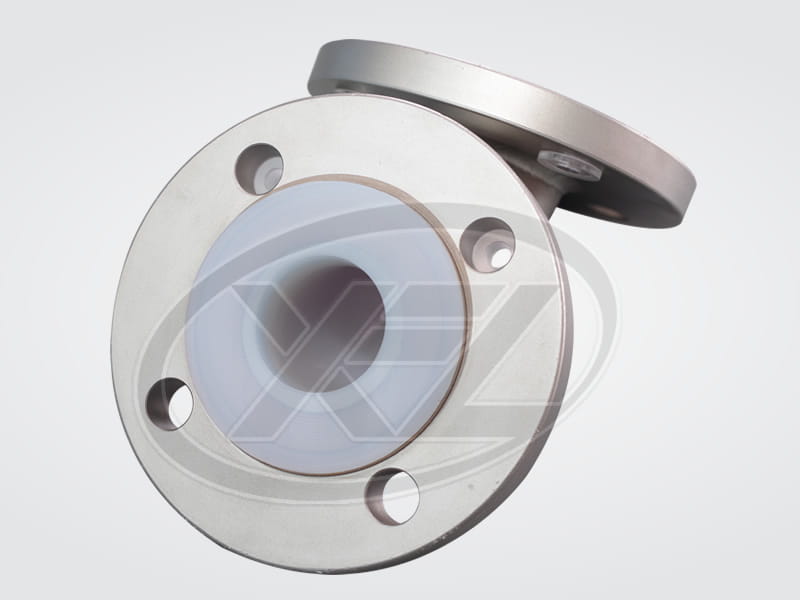

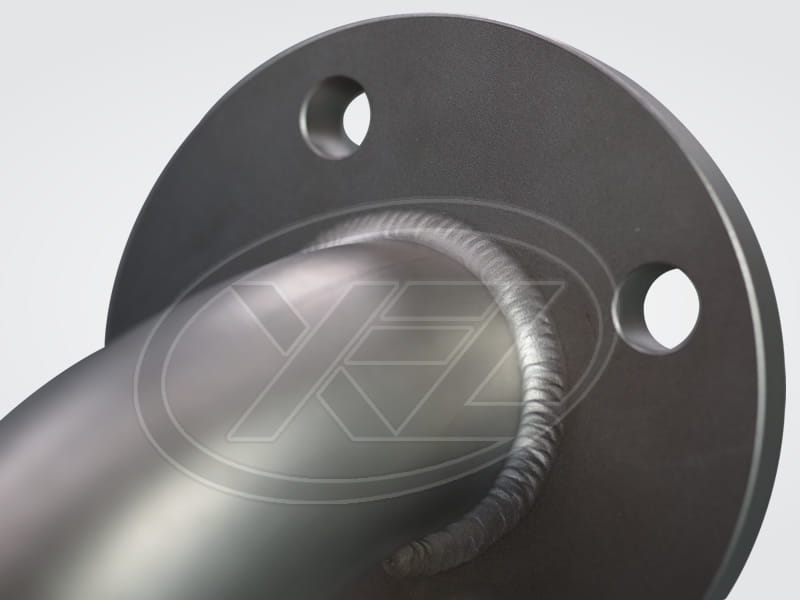

PFA Lined Pipes 90° Elbow

APPLICATION: Chemical Industry

Design And Manufacturing: HG/T3704

MATERIALS: Stainless Steel

LINING MATERIAL: PFA

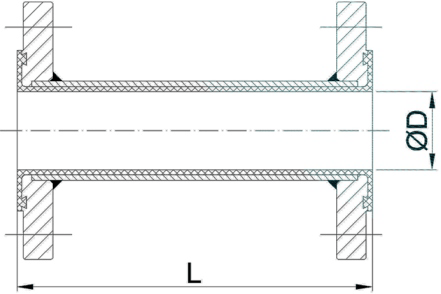

Structure length: GB/T12221 / HG/T3704

Symbol: GB/T12220

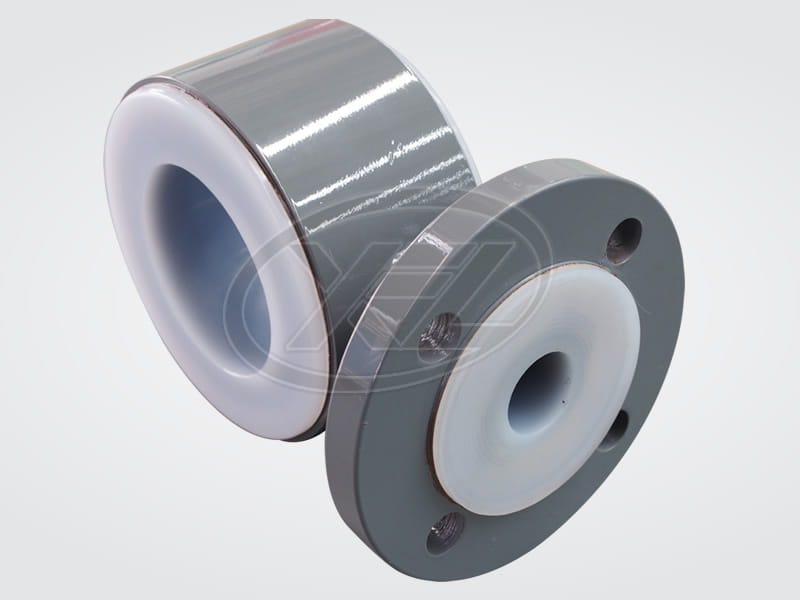

Molded PFA pipe fittings are made of strong corrosion-resistant PFA materials, which have the characteristics of high density, high strength, and uniform lining thickness.

1、PFA raw materials can be 3M6502TZ, AP230, PW-200, etc.

2、Length standard L=300, and other lengths are based on customer requirements.

3、The shell material can be stainless steel or carbon steel.

4、JIS, GB and ANSI can be provided for flange standards according to customer needs.

Size(mm)		L (mm)	∅d (mm)	∅d (mm)	材料 Material		Tolerance (mm)
DN	JIS 10K	L (mm)	PFA	PTFE	PFA	PTFE	Tolerance (mm)
15	15A	2000	15	15	√	√	±2
20	20A	2000	15	15	√	√	±2
25	25A	2000	20	20	√	√	±2
40	40A	2000	35	35	√	√	±2
50	50A	2000	45	45	√	√	±2
65	65A	2000	59	59	√	√	±2
80	80A	2000	74	74	√	√	±2
100	100A	2000	96	91	√	√	±2
125	125A	1000	119	115	√	√	±3
150	150A	1000	144	137	√	√	±3
200	200A	1000	200	193	√	√	±3
250	250A	1000	250	242	√	√	±3
300	300A	1000	299	290	√	√	±3
