Application Field

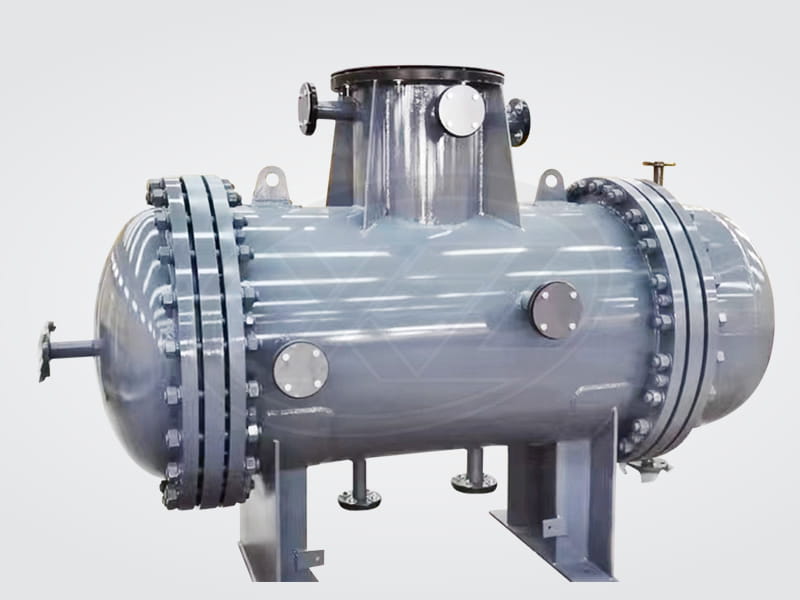

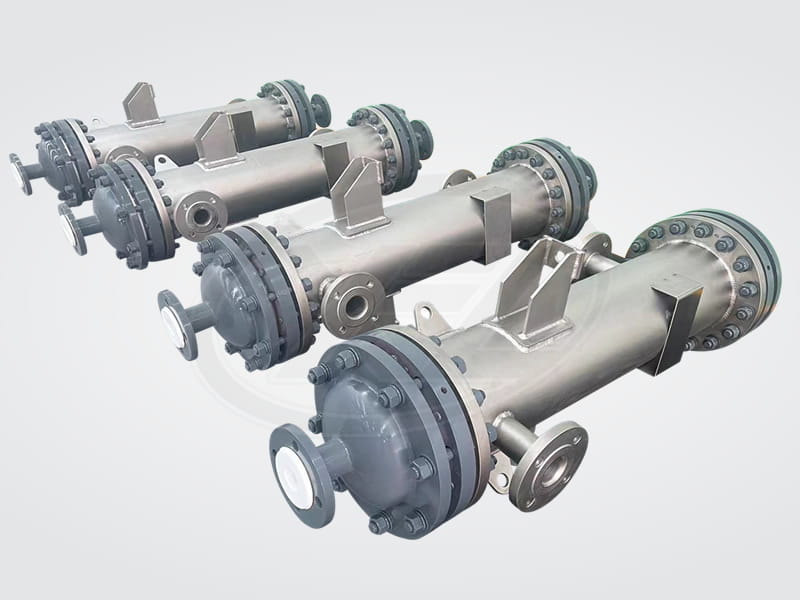

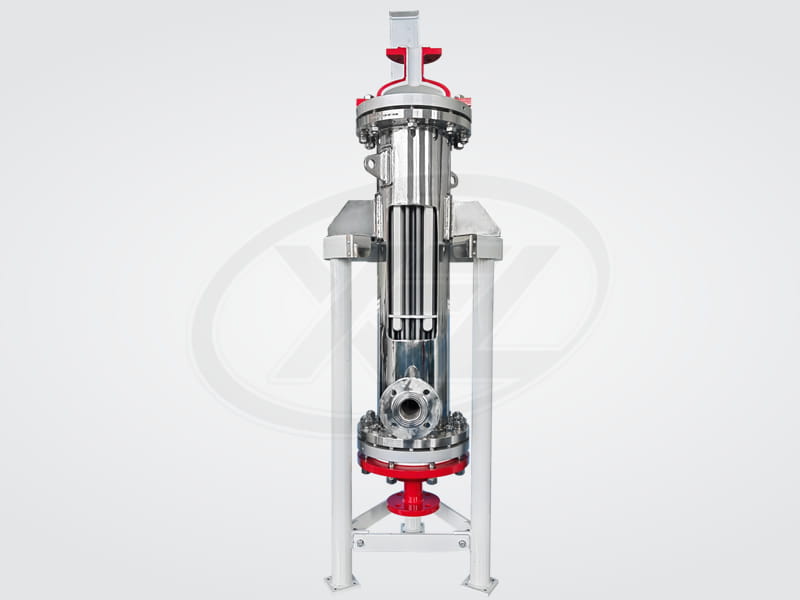

Silicon carbide heat exchangers can be widely used in corrosive working environments in fields such as chemical and pharmaceutical industries. They belong to a new type of material heat exchanger, and the heat exchange tubes are made using pressureless sintering technology.
Compared with traditional graphite heat exchanger, glass lined (enamel) heat exchanger and stainless steel heat exchanger, it has outstanding characteristics such as strong corrosion resistance, high heat exchange efficiency, long service life, high sealing cleanliness, strong resistance to Thermal shock, and has a very high cost performance ratio.
Product Advantages
◆ The thickness of the tube plate is designed according to national standards, which is higher than that of peers and improves strength;
◆ The tube plate molding process is a patented technology;
◆ The sealing ring adopts a double-layer FFK perfluoroether sealing ring to eliminate the risk of leakage;
◆ Extremely strong corrosion resistance, oxidation resistance and strong heat shock resistance;
◆ The thermal conductivity efficiency is much higher than other traditional heat exchangers;
◆ The comprehensive cost of purchase, maintenance, and unexpected shutdown is superior to that of graphite and other materials Metal heat exchanger.
DN | Specs | Quantity | L=3000mm | L=2500mm | L=2000mm | L=1500mm | L=1000mm |
DN100 | Φ14*1.5 | 7 | 0.92 | 0.77 | 0.62 | 0.46 | 0.31 |
DN150 | Φ14*1.5 | 19 | 2.51 | 2.09 | 1.67 | 1.25 | 0.84 |
DN200 | Φ14*1.5 | 31 | 4.09 | 3.41 | 2.73 | 2.05 | 1.36 |
DN250 | Φ14*1.5 | 48 | 6.33 | 5.28 | 4.22 | 3.17 | 2.11 |
DN300 | Φ14*1.5 | 70 | 9.24 | 7.70 | 6.16 | 4.62 | 3.08 |
DN350 | Φ14*1.5 | 96 | 12.67 | 10.56 | 8.44 | 6.33 | 4.22 |
DN400 | Φ14*1.5 | 130 | 17.15 | 14.29 | 11.44 | 8.53 | 5.72 |
DN450 | Φ14*1.5 | 170 | 22.43 | 18.69 | 14.95 | 11.22 | 7.48 |
DN500 | Φ14*1.5 | 208 | 27.44 | 22.87 | 18.30 | 13.72 | 9.15 |
DN600 | Φ14*1.5 | 304 | 40.11 | 33.43 | 26.74 | 20.06 | 13.37 |
DN700 | Φ14*1.5 | 406 | 53.57 | 44.64 | 35.71 | 26.79 | 17.86 |
